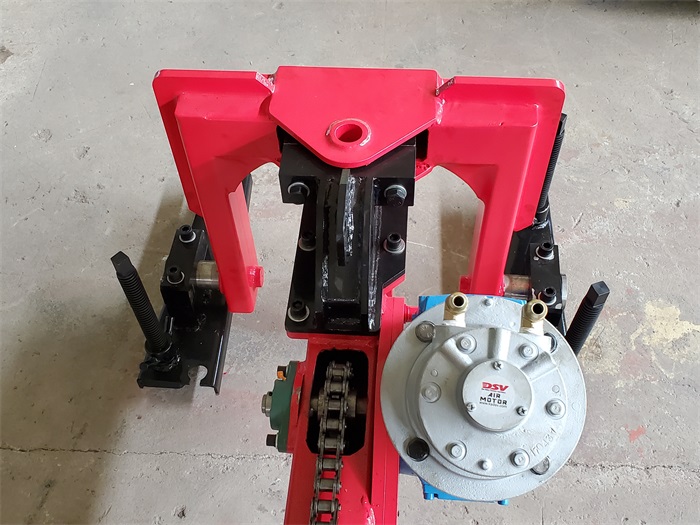

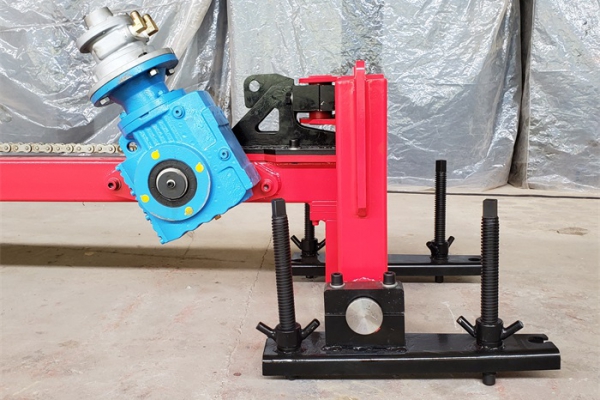

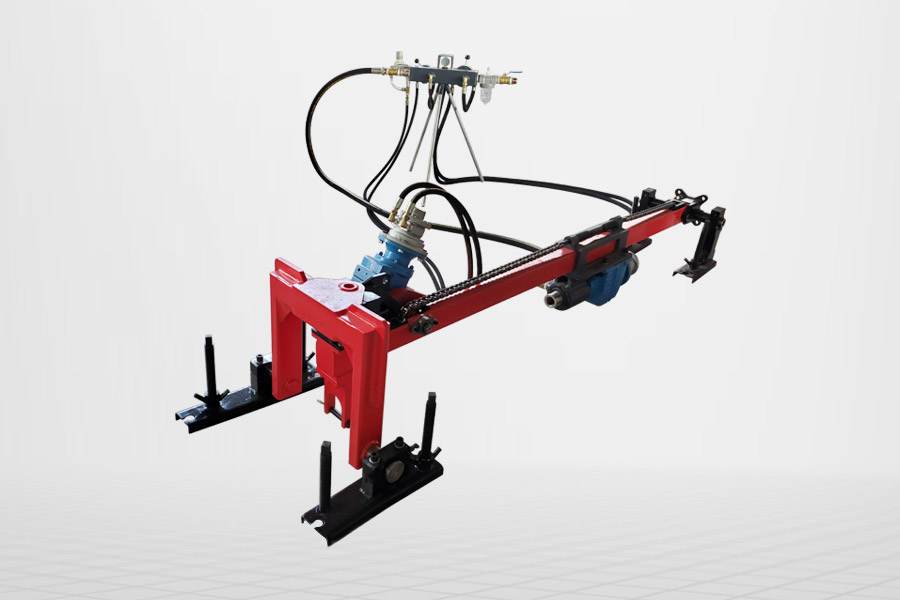

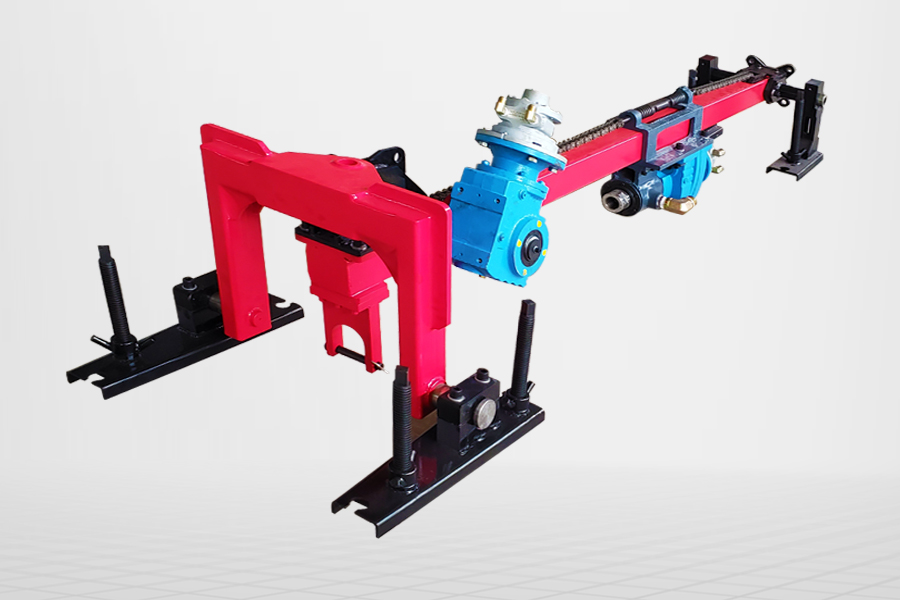

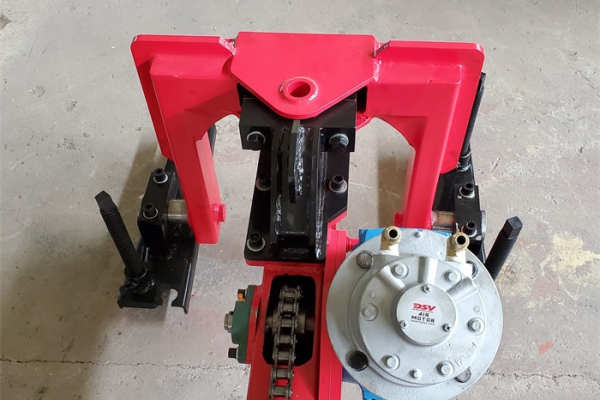

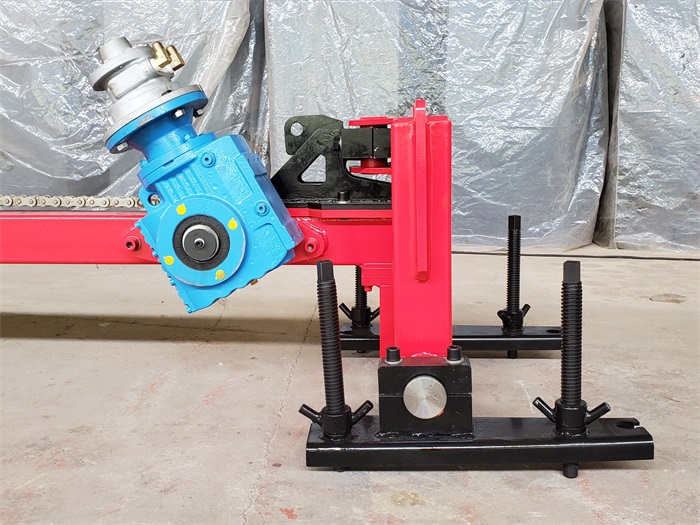

D-T-H Drilling Machine
Features
Technical Data
| 产品型号 | Model | CYQZ-90A/Pneumatic | CYQDZ-90A/Pneumatic & Electric |
| 钻孔直径 | Dimeter of drill hole | Φ90-Φ100 | Φ90-Φ100 |
|
耗气量 |
Air consumption | ≥12M3 | ≥6M3 |
| 工作风压 | Air pressure during working | 0.5-0.7Mpa | 0.5-0.7Mpa |
| 钻孔深度 | Max.depth of drill hole | 30M | 30M |
|
单次进给行程 |
Single feeding distance | 1.2M | 1.2M |
|
钻孔速度 |
Speed of drilling | 5-10M/H | 5-10M/H |
